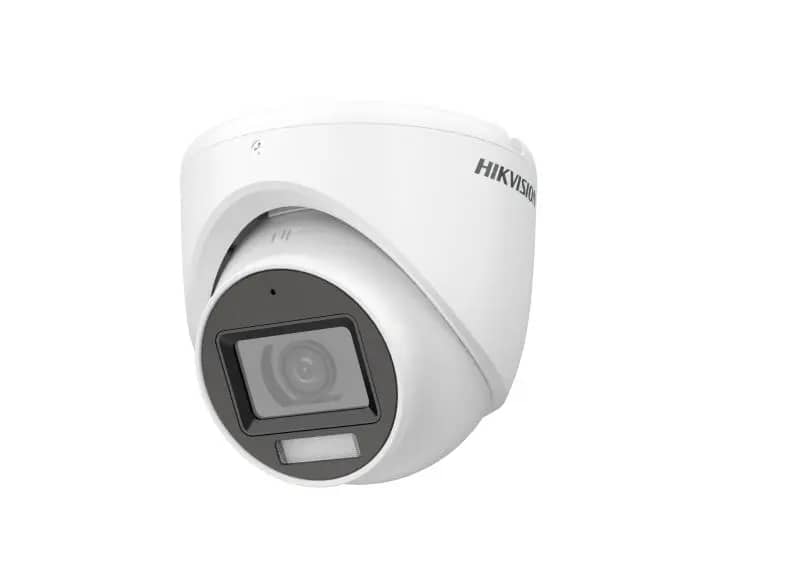

3K Smart Hybrid Light Audio Fixed Turret Camera

Camera

Image Sensor 3K CMOS

Max. Resolution2960 (H) × 1665 (V)

Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time:PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s

Day & Night:ICR

Angle Adjustment:Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Signal System:PAL/NTSC

Lens

Lens Type2.8 mm and 3.6 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8°

3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4°

Lens MountM12

Illuminator

Supplement Light Type:White Light;IR

Supplement Light Range

IR : Up to 30 m

White Light : Up to 20 m


Image Settings:Brightness, Sharpness, Smart IR

Frame Rate:

TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps

AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps

CVI: 4 MP@25 fps/30 fps

CVBS: PAL/NTSC

Day/Night Mode:Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR):Digital WDR

Image Enhancement:DWDR/BLC/HLC/Global

White Balance:Auto/Manual

AGC:Yes

Interface

Video Output:Switchable TVI/AHD/CVI/CVBS

General

Material:Metal

Dimension:80 mm × Ø85.1 mm (3.1″ × Ø3.4″)

WeightApprox. 300 g (0.66 lb.)

Operating Condition:-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication:HIKVISION-C

Power Supply:12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.

Consumption:Max. 2.9 W

Approval

Protection:IP67
