Caméra tourelle fixe 2 MP

Camera

Mode:lDS-2CE76D0T-EXIMF

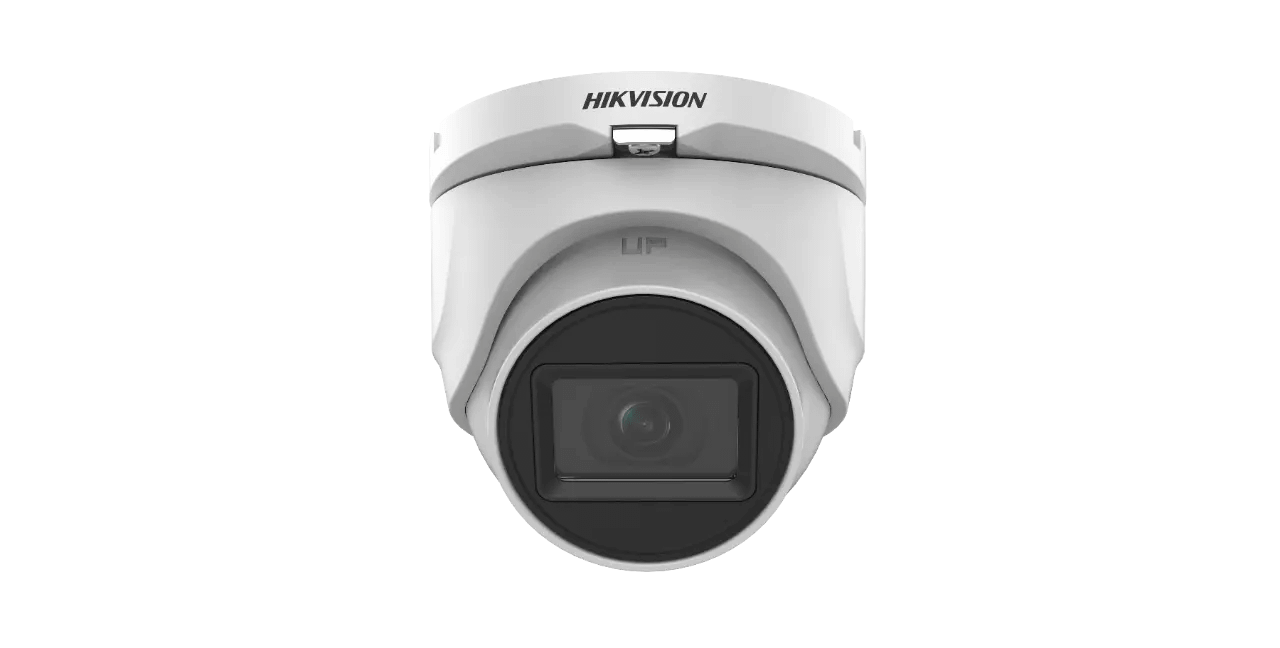

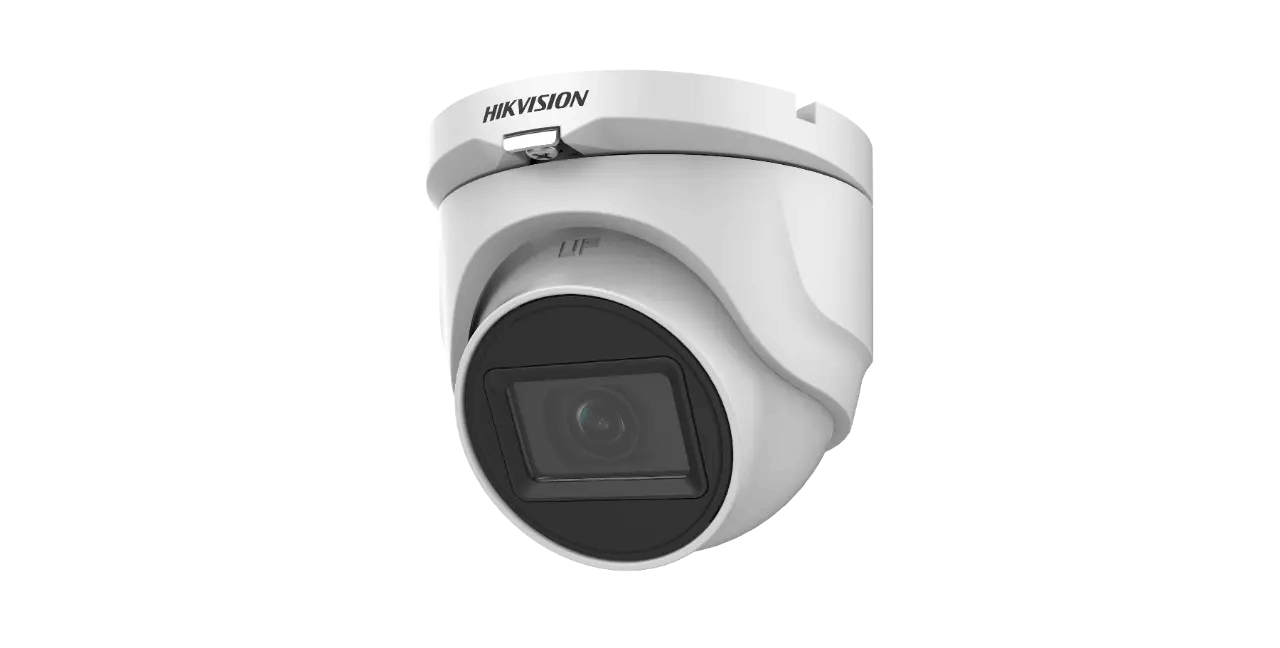

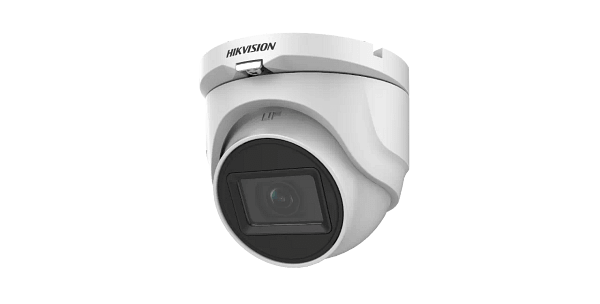

Product Name:2MP Outdoor EXIR Fixed Turret Camera

Image Sensor:2 MP CMOS

Signal System:PAL/NTSC

Resolution:1920 (H) × 1080 (V)

Frame Rate:

TVI: 1080p@25fps/30fps

AHD: 1080p@25fps/30fps

CVI: 1080p@25fps/30fps

CVBS: PAL/NTSC

Min. Illumination:0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time:PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Lens:2.8 mm, 3.6 mm Fixed Lens

Field of View:

2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°

3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°

Lens Mount:M12

Day & Night:IR Cut Filter

WDR (Wide Dynamic Range):Digital WDR

Angle Adjustment:Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°


Image Mode:STD/HIGH-SAT

AGC:Yes

Day/Night Mode:Auto/Color/BW (Black and White)

White Balance:Auto

AE (Auto Exposure) Mode:BLC;Global;DWDR

Noise Reduction:2D DNR

Function:Sharpness;Smart IR;Mirror;Brightness

Interface

Video Output:Switchable TVI/AHD/CVI/CVBS

General

Operating Conditions:-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)

Power Supply:12 VDC ± 25%

Consumption:Max. 3.3 W

Protection Level:IP67

Material:Metal

IR Range:Up to 20 m

Communication:HIKVISION-C

Dimension:90 mm × 82.6 mm × 79.372 mm (3.54″ × 3.25″ × 3.12″)

Weight:Approx. 360g (0.79 lb.)
