Description

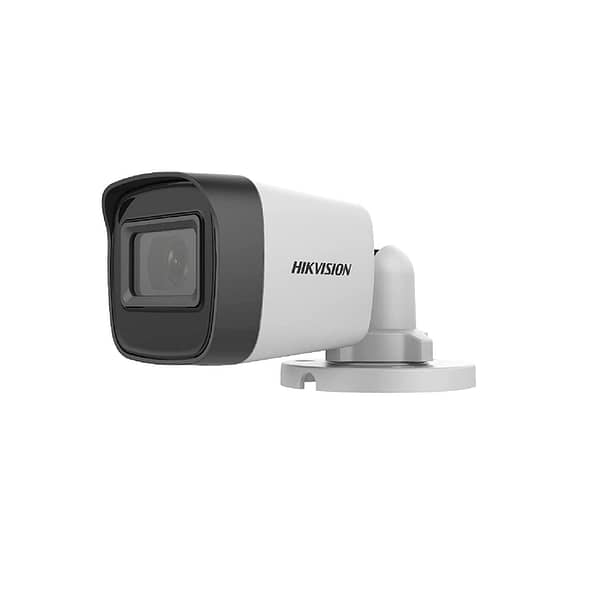

Camera hikvision
Image Sensor:2 MP CMOSMax. Resolution:1920 (H) × 1080 (V)
Min. Illumination:0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time:PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Day & Night:ICR
Angle Adjustment:Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
Signal System:PAL/NTSC
Lens
Lens Type:2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV:
2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°°, vertical FOV: 30°, diagonal FOV: 58.8°
Lens MountM12
Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Smart IR
Frame Rate
TVI: 1080P@30fps, 1080P@25fps
CVI: 1080P@30fps, 1080P@25fps
AHD: 1080P@30fps, 1080P@25fps
CVBS: PAL/NTSC
Day/Night Mode:Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR):Digital WDR
Image Enhancement:BLC, HLC
White Balance:ATW/MANUAL
AGC:Support
Interface
Video Output:Switchable TVI/AHD/CVI/CVBS
General
Material:Metal
Dimension:57.9 mm × 60.9 mm × 138.8 mm (2.28″ × 2.39″ × 5.47″)
Weight:Approx. 257 g (0.57 lb.)
Operating Condition:-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
Communication:HIKVISION-C
Power Supply:12 VDC ± 25%
Consumption:Max. 3 W
IR RangeUp to 30 m
Approval
ProtectionIP67
